30° Soft Close Hinge

from £8.96
Product
Specification

30° Soft Close Hinge

from £8.96
Hettich

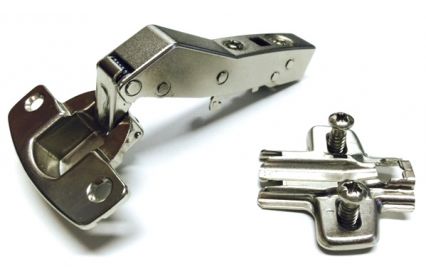

30° Soft close hinge and plate.

  • Concealed hinge with clip on installation and integrated Silent System
  • Quality classification under EN 15570, Level 3
  • For diagonal base units, carcase angle 120°
  • For door thickness 15 - 28 mm
  • Cup diameter 35 mm
  • Cup depth 12.8 mm
  • Integrated overlay adjustment + 2 mm / - 2 mm
  • Integrated depth adjustment + 3 mm / - 2 mm
  • Height adjustment at mounting plate
  • Hinge arm material: zinc die-cast nickel plated
  • Hinge cup material: steel nickel plated

Code: 9085166

£8.96

Excellent
Added to basket

Please wait...

All colours/finishes shown on our website may vary from the actual finishes themselves. The images have been produced as accurately as possible. We recommend ordering free colour swatches so that you’re happy with the actual colour and texture before placing your order.
